• Integrated speed control and torque limitation
• Extensive criteria for switch-off of the riveting process
• Integrated length measurement including center position check
• Enhanced Nietcontrol functions thanks to the latest servo technology
• No emissions, suitable for clean room applications

Area of application: As a riveting machine: comfortable and variable manual workstation. As a riveting unit: for integration into conveyor systems, assembly lines and automated production facilities.

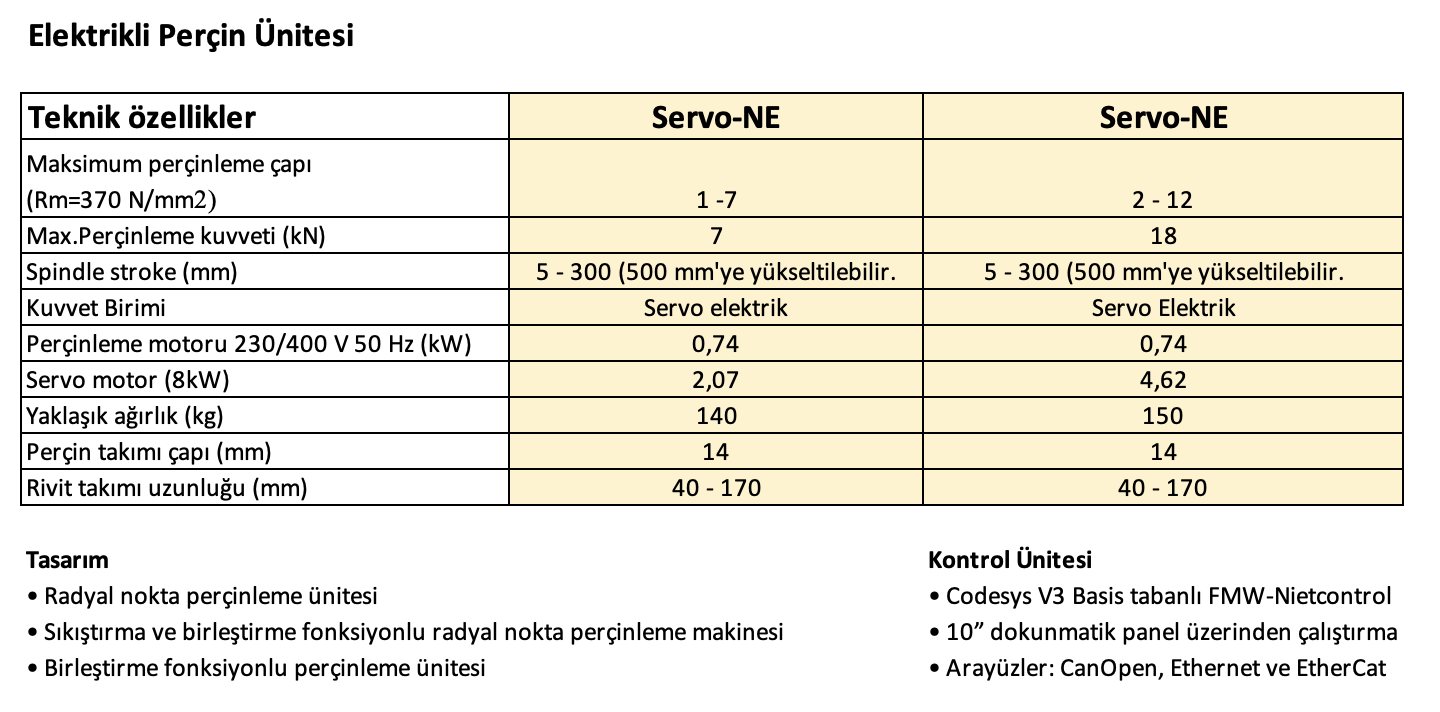

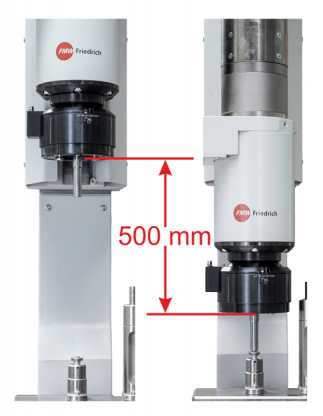

A maximum riveting force of 18 kN, a unique spindle stroke of up to 500 mm and an idle stroke speed of up to 250 mm/s are the core features of this highly versatile riveting unit.
